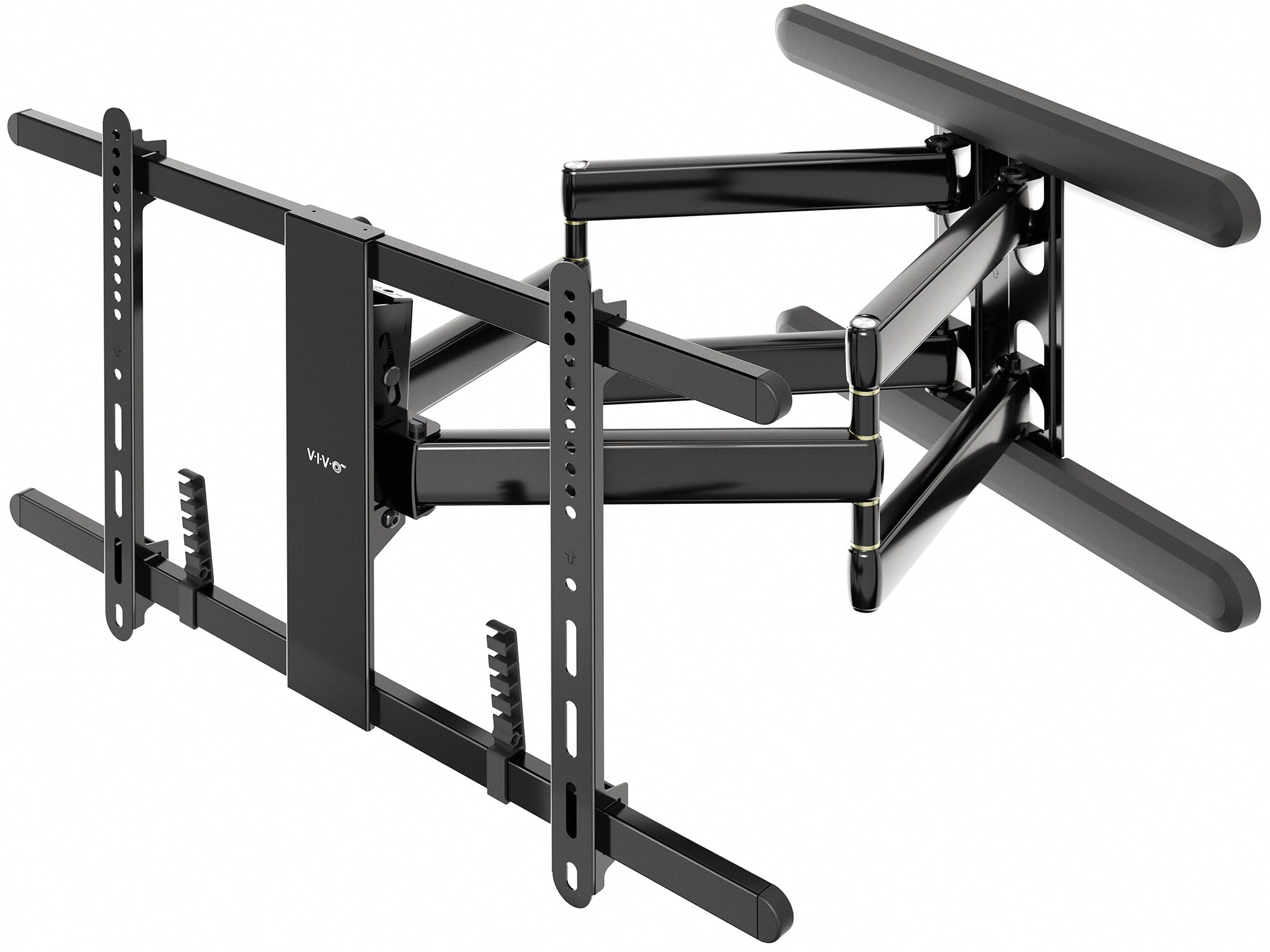

VIVO PRO Premium Aluminum Full Motion TV Wall Mount - 37" to 86" Screens

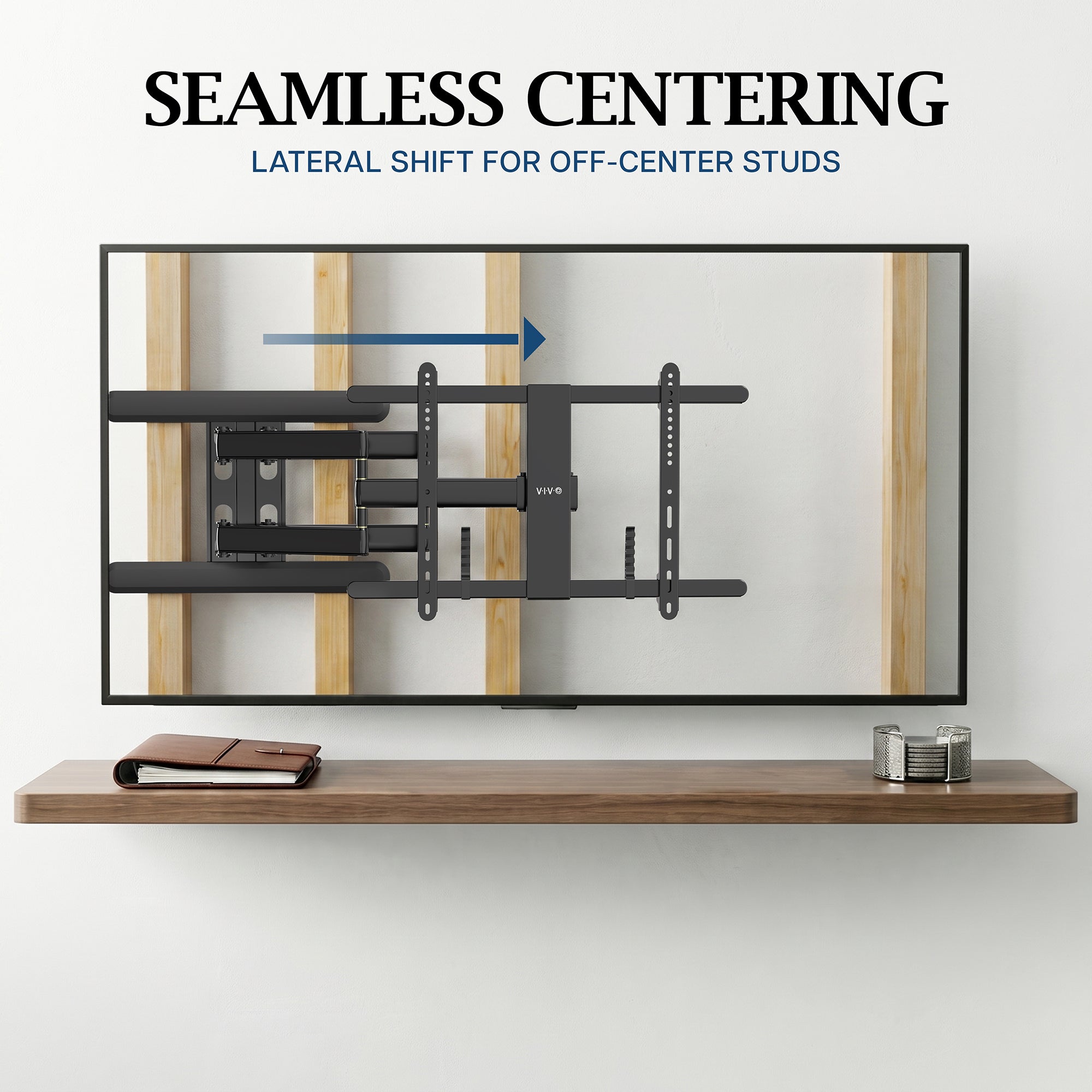

Upgrade your viewing setup with the VIVO PRO Premium Aluminum Full Motion TV Wall Mount (PRO-TVWM86A). Constructed from durable aluminum and steel, this heavy-duty mount securely supports flat and curved screens ranging from 37" to 86" and holds up to 154 lbs. Its articulating arms extend from a low-profile 2.7" to a full 26", providing exceptional flexibility. Adjustments include +5° to -10° tilt and up to 120° swivel, allowing you to easily find the perfect ergonomic viewing angle and minimize screen glare. The large wall plate simplifies installation on dual wood studs, brick, or concrete walls, and the wide swivel range ensures your screen can be perfectly centered, even with off-center stud placement. Ideal for conference rooms, executive offices, schools, hospitals, home theaters, and more, this mount also features built-in cable management and smooth copper bushings for effortless movement.

• Screen Sizes: 37” to 86"
• Screen Types: Flat and Curved

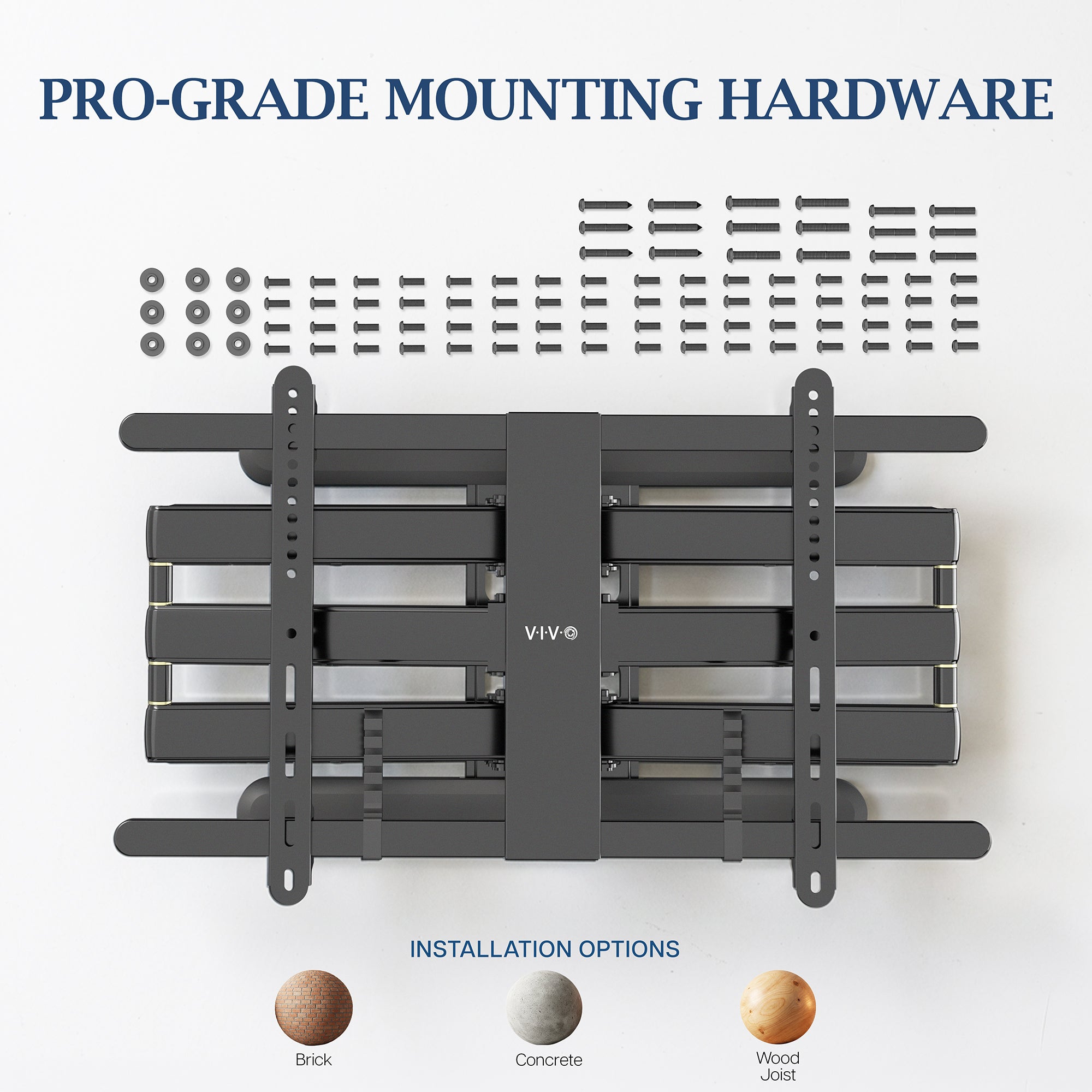

• Mounting Options: Dual Wood Studs, Brick/Concrete
• VESA Standard: 200x200mm, 300x200mm, 400x200mm, 200x300mm, 300x300mm, 400x300mm, 200x400mm, 300x400mm, 400x400mm, 600x400 mm

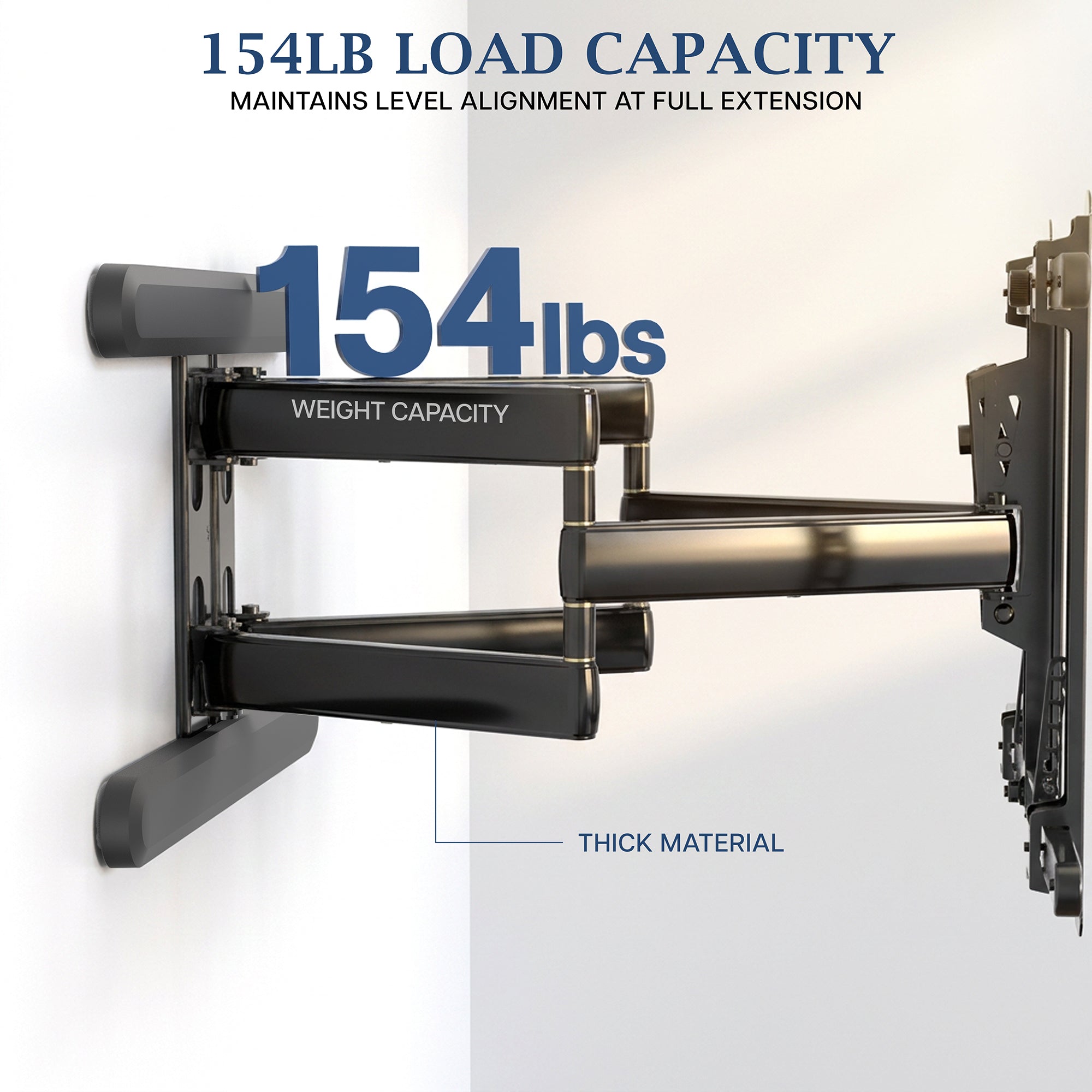

• Weight Capacity: 154 lbs

• Material: Aluminum, Steel, Plastic

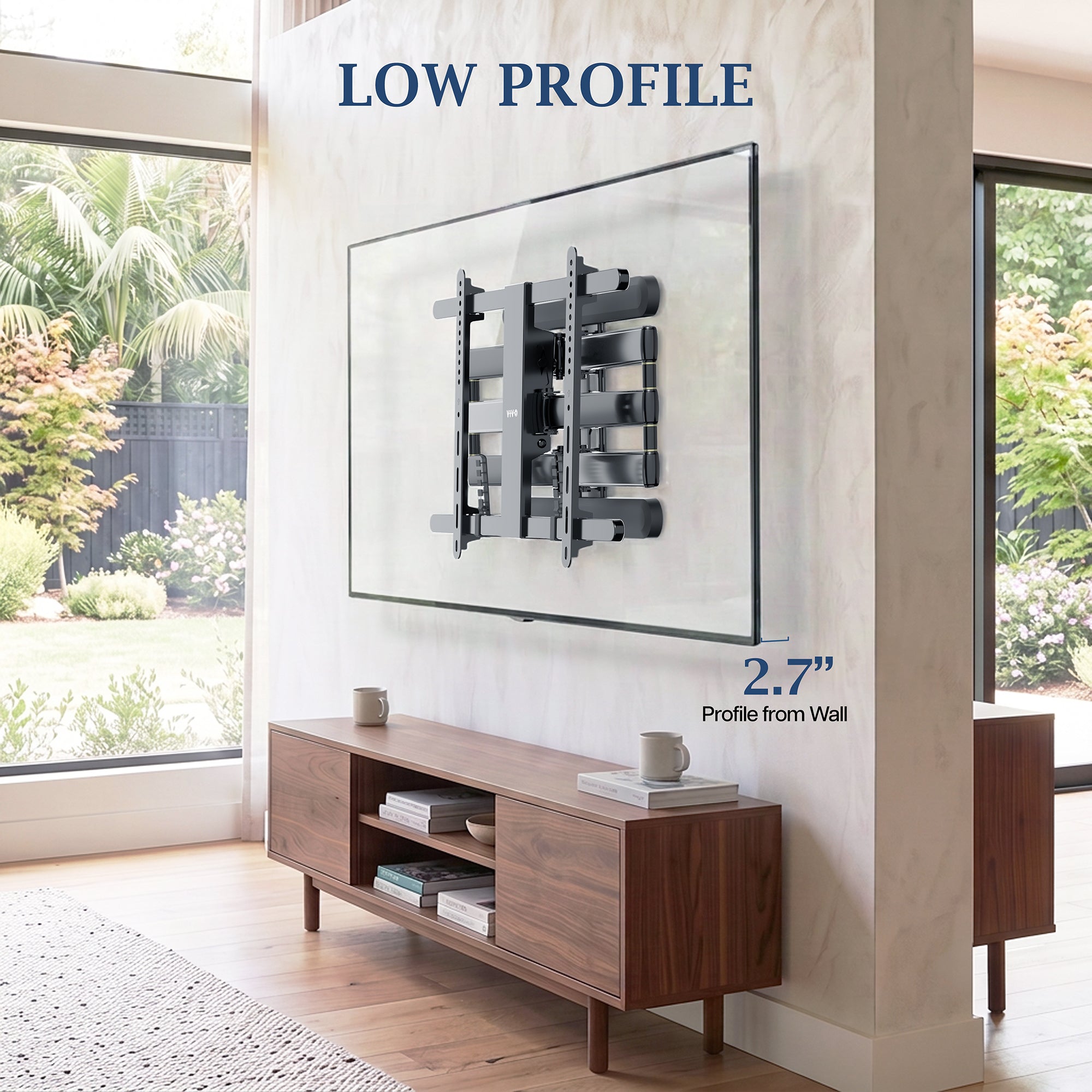

• Extension (Profile): 2.7” to 26”

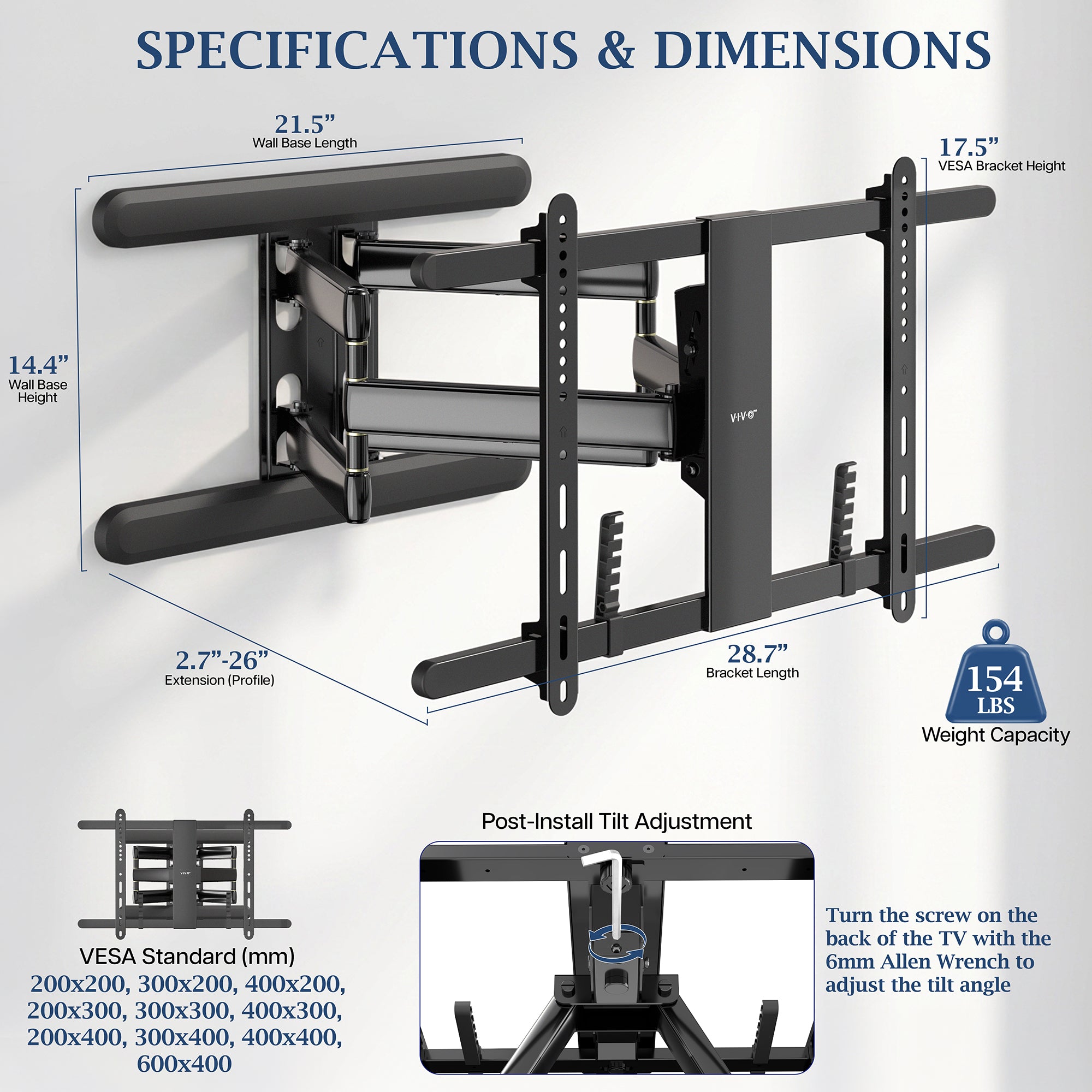

• Wall Base Dimensions: 21.5” x 14.4”
• Main Bracket Dimensions: 28.7”L x 14.4”H
• VESA Bracket Height: 17.5”

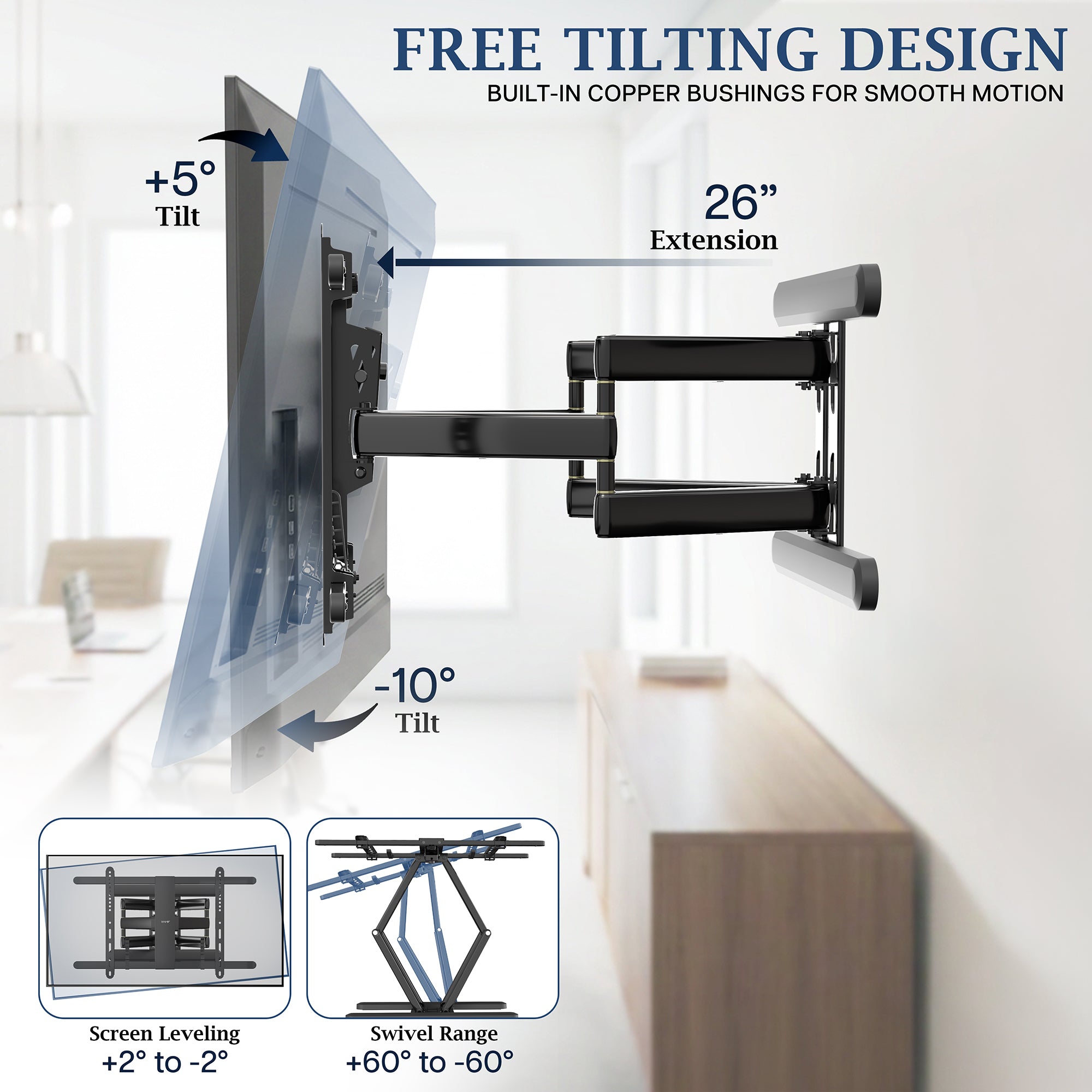

• Articulation: +5° to -10° tilt, +60° to -60° swivel, +2° to -2° screen leveling
• Total Product Dimensions: 28.7” x 26”x 17.5”

• Assembly Manual PDF
